36" W x 60" L (914 mm W x 1,524 mm L) 230 V Side Exhaust Metal Capture Downdraft Table

SKU: 64404

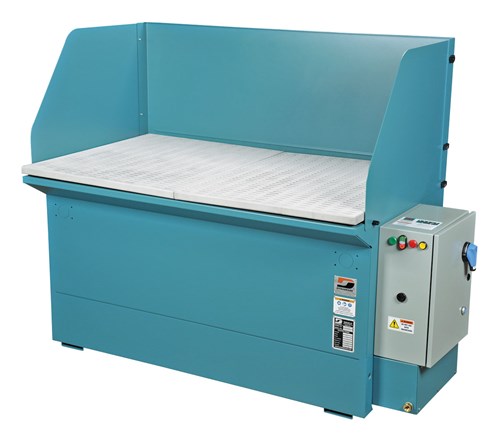

36" W x 60" L (914 mm W x 1,524 mm L) 230 V Side Exhaust Metal Capture Downdraft Table

SKU: 64404

QTY:

This product does not qualify for free shipping.

This product does not qualify for free shipping.

  • Meets these NFPA requirements:
    • Interlock pneumatic valve with blower and time-delay
    • Tools operate only when downdraft table is running
    • Class II, Group E explosion-proof motor
    • Aluminum top for non-spark work surface
    • Non-spark aluminum blower on collector's clean-air side
    • Automatic water level control
    • Vented sump (main tank)
    • Low voltage control
    • Lockable fused power disconnect
  • 230 V
  • Side Exhaust
  • 42 gallon capacity
  • 1,800 CFM at 4" static pressure
  • 1800.0 vacuum suction
  • Ideal for capturing aluminum and titanium dust. Working area of 36" wide x 60" long accommodates large work pieces. Includes casters for easy maneuvering; casters also lock securely into place.
  • Overload protection / fused disconnect for safety.
  • Sturdy 12-gauge construction. Includes shields for both sides and back of table.
  • Workpiece capacity / load rating of 2,000 pounds.
  • Easy system maintenance. No paper filters to replace!



Product Resources

Dynabrade Metal Capture Downdraft Table Manual



Need Help? Contact us.

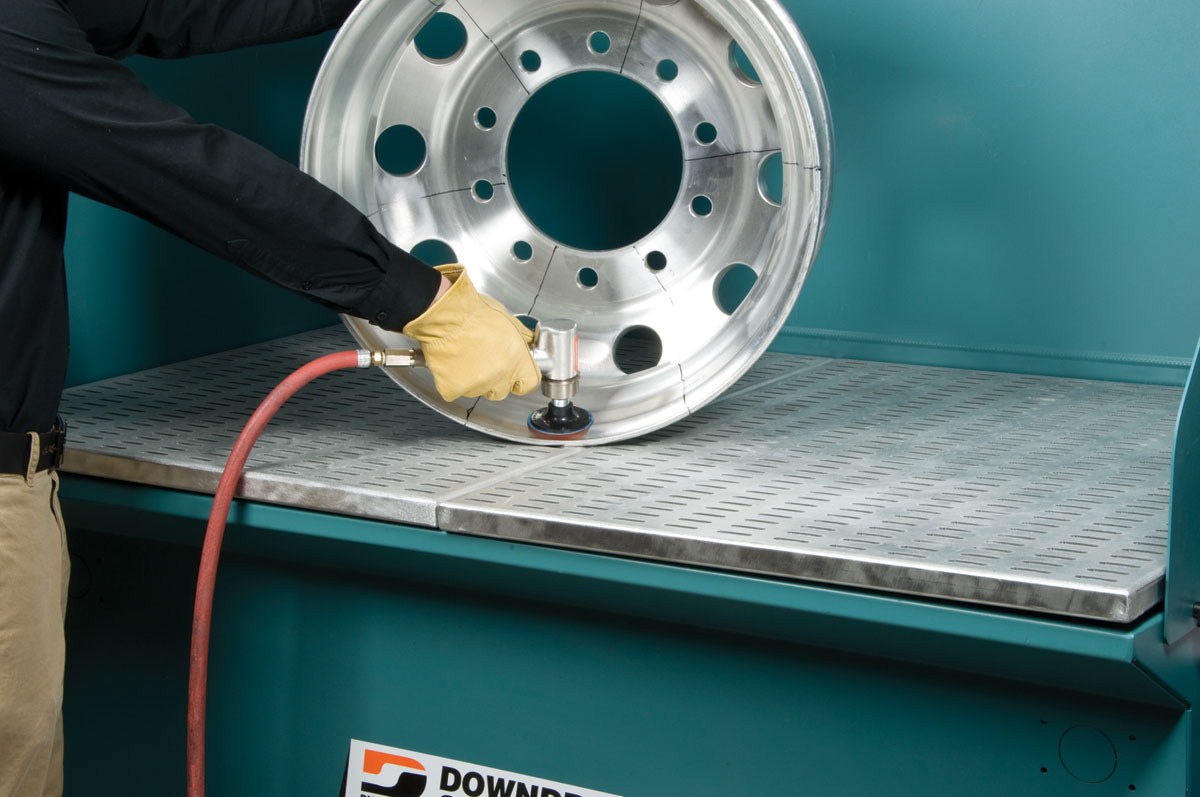

The 230 V Side Exhaust Dynabrade Metal Capture Downdraft Table is ideal for capturing aluminum and titanium dust. Its large dimensions can accommodate large work pieces. Casters lock into place and allow easy maneuvering.
