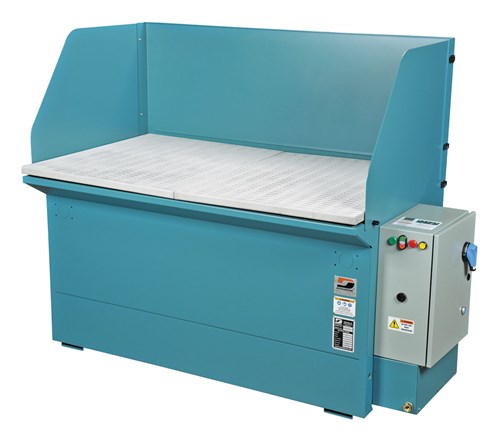

36" W x 60" L (914 mm W x 1,524 mm L) 460 V Up Exhaust Metal Capture Downdraft Table

SKU: 64403

36" W x 60" L (914 mm W x 1,524 mm L) 460 V Up Exhaust Metal Capture Downdraft Table

SKU: 64403

QTY:

This product does not qualify for free shipping.

This product does not qualify for free shipping.

  • Meets these NFPA requirements:
    • Interlock pneumatic valve with blower and time-delay
    • Tools operate only when downdraft table is running
    • Class II, Group E explosion-proof motor
    • Aluminum top for non-spark work surface
    • Non-spark aluminum blower on collector's clean-air side
    • Automatic water level control; vented sump (main tank)
    • Low voltage control
    • Lockable fused power disconnect
  • 460 V
  • Up Exhaust
  • 42 gallon capacity
  • 1800.0 vacuum suction
  • 1,800 CFM at 4" static pressure
  • Ideal for capturing aluminum and titanium dust. Working area of 36" wide x 60" long accommodates large work pieces. Includes casters for easy maneuvering; casters also lock securely into place.
  • Overload protection / fused disconnect for safety.
  • Sturdy 12-gauge construction. Includes shields for both sides and back of table.
  • Workpiece capacity / load rating of 2,000 pounds
  • Easy system maintenance. No paper filters to replace!



Product Resources

Dynabrade Metal Capture Downdraft Table Manual

Need Help? Contact us.

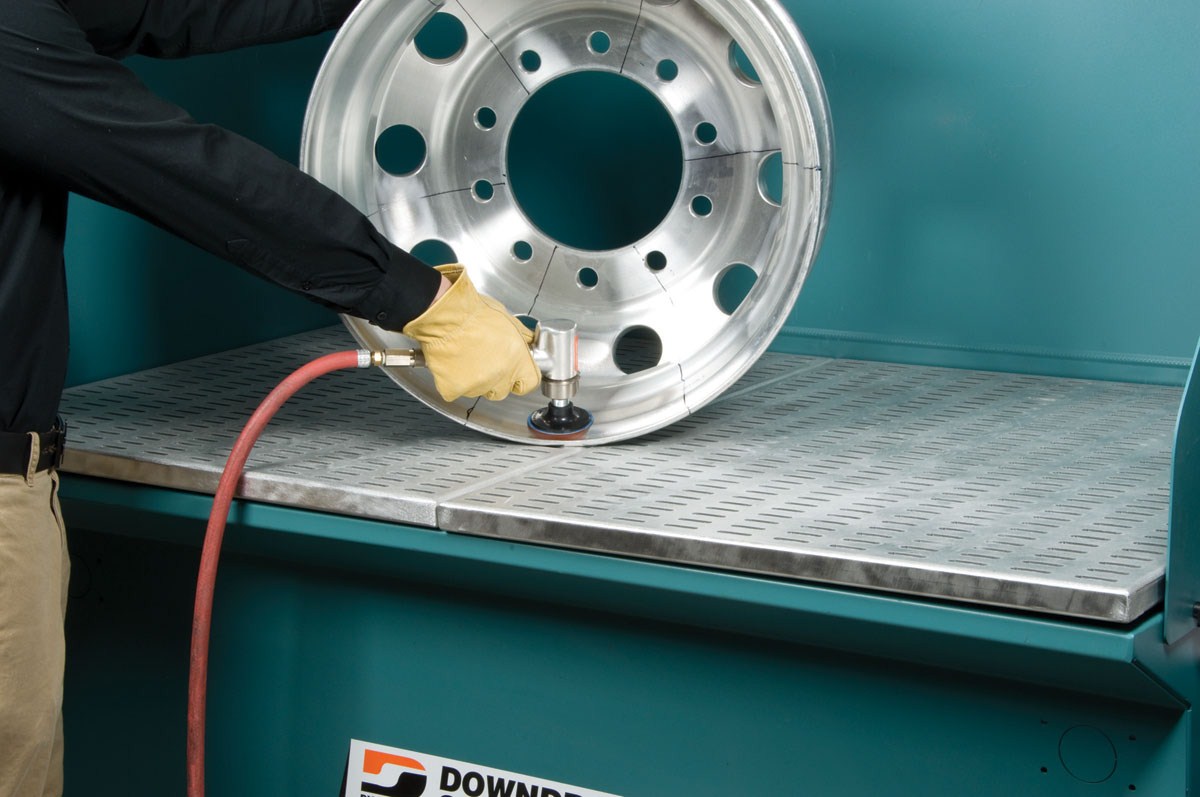

The 460 V Up Exhaust Dynabrade Metal Capture Downdraft Table is ideal for capturing aluminum and titanium dust. Its large dimensions can accommodate large work pieces and allow easy maneuvering.
