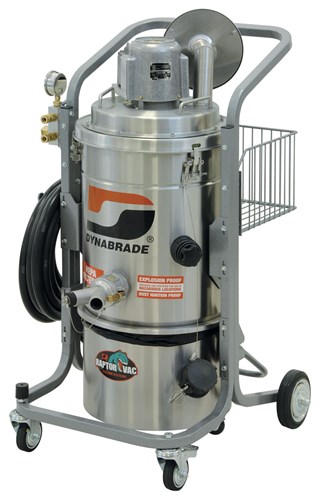

Raptor Vac Electric Portable Vacuum System 5 lbs. (2.27 kg) into 6.25 Gal. (24 L), 20 A, 120 V 50/60 Hz, Division 1

SKU: 61450

Raptor Vac Electric Portable Vacuum System 5 lbs. (2.27 kg) into 6.25 Gal. (24 L), 20 A, 120 V 50/60 Hz, Division 1

SKU: 61450

QTY:

This product does not qualify for free shipping.

This product does not qualify for free shipping.

  • Electric Portable Vacuum For use on metallic surfaces such as aluminum, magnesium, titanium, commercial alloys. Collects maximum of 5 lbs. (2.27 kg) of dust. Designed for dry-only source capture, where fine dust must be recovered. Legally certified as explosion-proof and dust ignition-proof. Includes HEPA H14 Filter with 99.995% efficiency on 0.3 micron. Filter is located downstream of the motor. Manual Filter Shaker (MFS) system.
  • Top-quality stainless steel body and 6.25 gallon (24 liter) recovery tank. Maximum 5 pounds (2.27 kg) of metal dust recovery. Easy one-click detaching and connecting of recovery tank. Unit is static-dissipating and conductive. Aerosol leak tested for quality assurance. Equipped with easy-glide cart and tool basket. Guaranteed for safe recovery of combustible/conductive dusts. Includes 96608 Conductive Cleaning Kit. Connect two tools simultaneously.
  • Vacuum for use in:
    Group D:
    atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air that may burn or explode
    Group E:
    atmospheres, containing potentially combustible dusts, including aluminum, magnesium, and their commercial alloys
    Group F:
    atmospheres, containing combustible carbonaceous dusts, such as coal, carbon black, charcoal, coke dust
    Group G:
    atmospheres, containing wood and plastic dusts
  • Included:
    - Two 20' (6 m) Conductive Coaxial Hoses with Integrated Air Lines
    - Y-Connector
    - Two Composite Couplers
    - Two Vacuum Hose Swivel Adapters
    - Conductive Poly Liner
    - 3/4" x 25' (19 mm x 7.6 m) Conductive Air Line Supply
Need Help? Contact us.

Specifications

Certification
CSA
Collected Material
Metallic Alloys
Filter Rating
HEPA14
Filtration Media
Dry
hp
1000.0
Location
Hazardous Location
Powered By
Electric Motor
Water Static Lift
69 / 175 /172

RELATED PRODUCTS

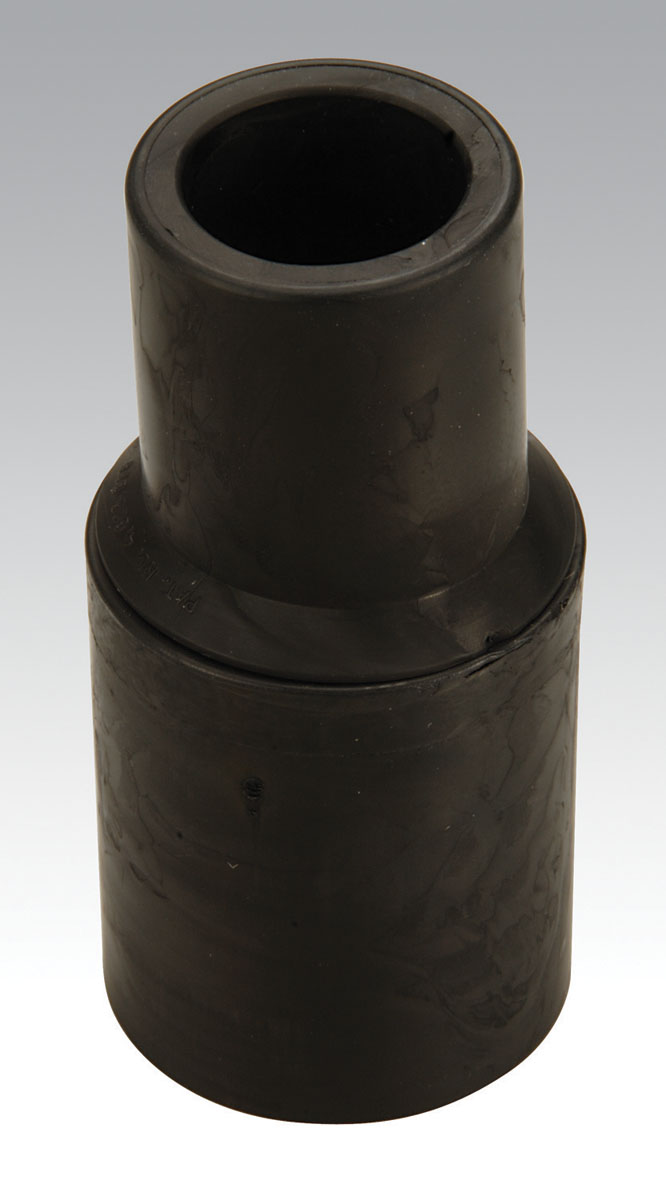

1-1/4" Thread to 1" Non-Thread Conductive Swivel
SKU: 31907
Add to Cart to See Price

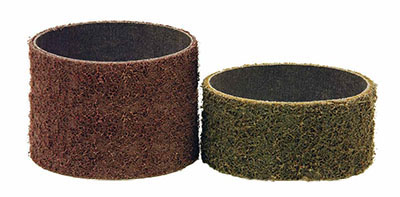

5" (127 mm) Dia. x 3" (76 mm) W Coarse NWN DynaBrite Band
