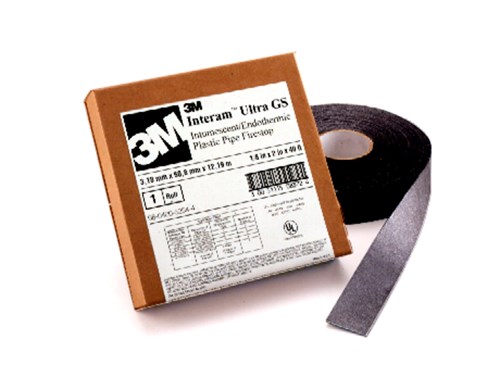

3M™ Fire Barrier Ultra GS Wrap Strip, 2 in x 40 ft, Roll, 5 per case

SKU: 7000006380

3M™ Fire Barrier Ultra GS Wrap Strip, 2 in x 40 ft, Roll, 5 per case

SKU: 7000006380
$147.93
Add $199.00 worth of items to your cart to qualify for free shipping

Minimum Order Quantity: 5 Roll
QTY:
SHIPPING DIMENSIONS Height: 11.31 Inches Width: 11.00 Inches Length: 13.63 Inches Weight: 29 Lb(s) 0 Oz

Product Benefits

  • Graphite-based firestop is intumescent for thermal insulation (Intumescent material effectively firestops non-metallic penetrants)
  • Excellent flexibility for easy installation around through-penetrants
  • Easily rolled out, cut and shaped with common tools
  • Re-enterable material saves time and money after installation
  • Firestop tested up to 4 hours in accordance with ASTM E 814 (UL 1479)

More Product Details

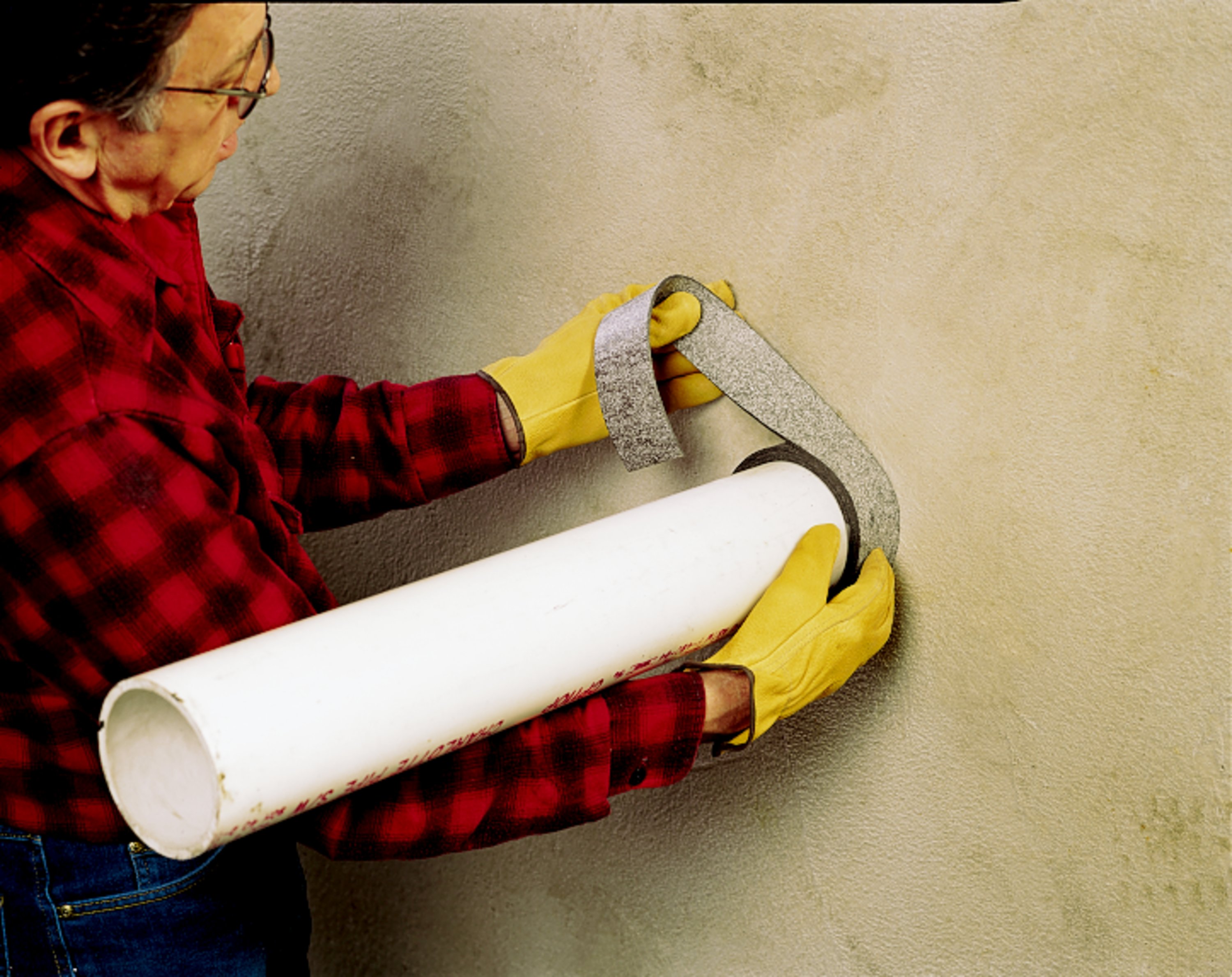

Applying 3M™ Fire Barrier Ultra GS Wrap Strip to PVC pipe for effective firestop
Flexible intumescent mat expands when exposed to high temperatures
Expanding Firestop Material for Non-Metallic Pipe Penetrations
Engineered specifically as a firestop suitable for plastic and other non-metallic pipe penetration systems, 3M™ Fire Barrier Ultra GS Wrap Strip is fire-rated up to 4 hours in tested and listed systems and meets ASTM E814 (UL 1479) performance standards for exposure to flame, heat and water. It features a largely inorganic intumescent graphite-based construction that expands when heated to deliver excellent thermal insulation and prevent heat transfer, as well as provide an effective firestop for non-metallic penetrants.

Recommended Applications
  • Firestops ccPVC, PVC, CPVC, FRPP, PVDF, ccABS and ABS pipes penetrating 1- and 2-hour fire-rated gypsum wallboard assemblies
  • Through-penetration systems in up to 3-hour fire-rated concrete walls and floors
  • Insulated HVAC penetration systems
  • Drain, waste, vent or closed pipe systems
  • In conjunction with 3M™ Fire Barrier Composite Sheet CS-195+ for large openings
  • Use with the 3M™ Fire Barrier RC-1 Restricting Collar

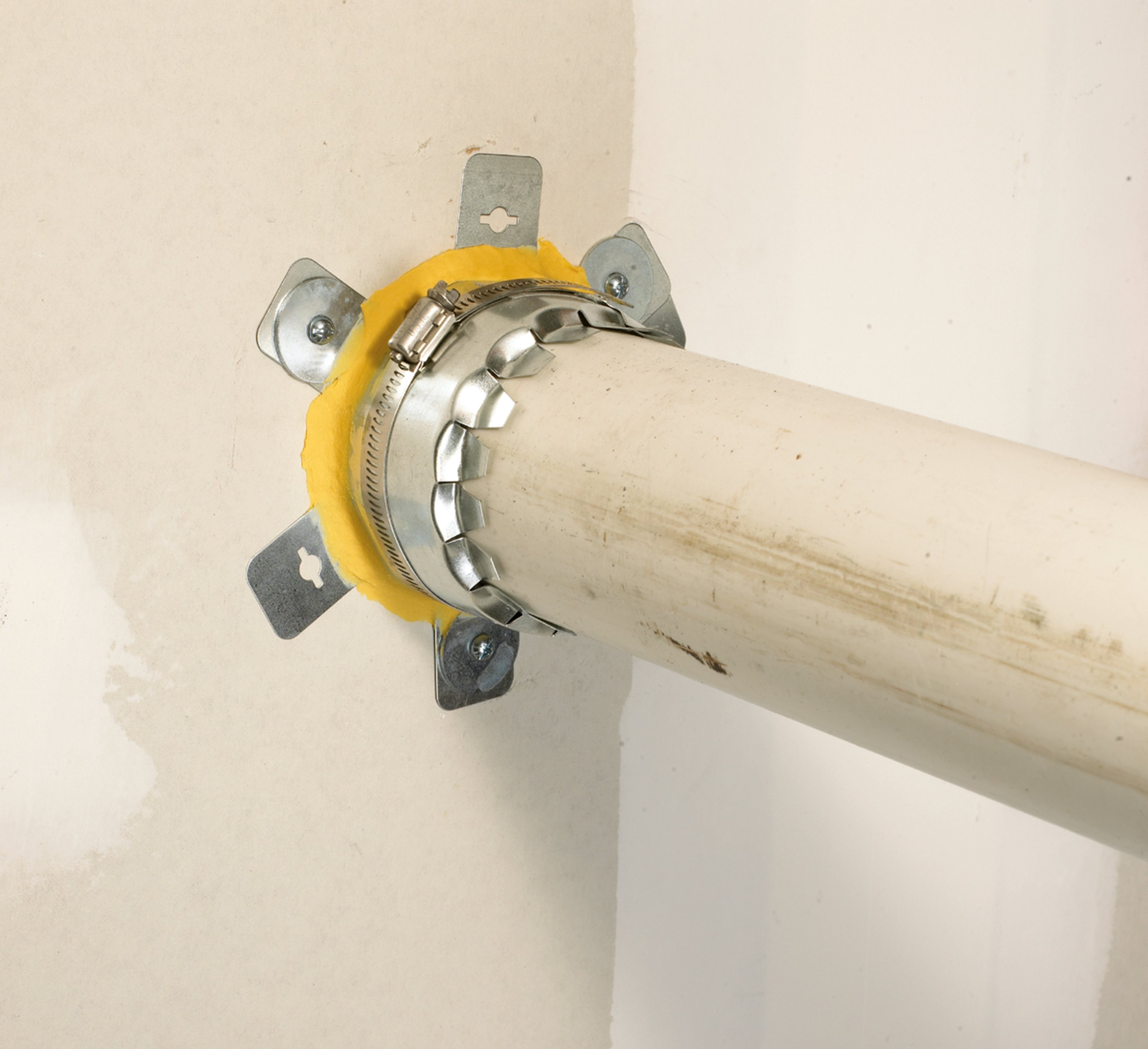

3M™ Fire Barrier Ultra RC Pack & 3M™ Ultra GS Wrap Strip application on PVC pipe
Used in conjunction with 3M™ Fire Barrier Ultra RC Pack—a one-piece metal collar assembly encasing 3M's heat expanding Ultra GS material
A Firestop that Keeps Saving
3M™ Fire Barrier Ultra GS Wrap Strip firestop material is very versatile and flexible: installers simply roll it out and cut as much material as required using common tools. The conformable material wraps easily around the penetrant, saving time and labor. It is designed for excellent weatherability against temperature and humidity, and is re-enterable to save added time and material costs after installation.

The Science of Better Fire Protection from 3M
Since 1925 when one of 3M lab assistants invented masking tape, 3M has been applying science to life — developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each of 3M adhesives, sealants and protective coatings including 3M™ Fire Barrier Ultra GS Wrap Strip — to improve performance, and to help businesses like yours operate faster, better and more efficiently.

See More 3M Fire Protection Product Applications (PDF, 796.59 Kb)
