3M™ Fire Barrier Putty Sleeve Kit DT 100, 1 in, Round, 1 per case

SKU: 7000145572

3M™ Fire Barrier Putty Sleeve Kit DT 100, 1 in, Round, 1 per case

SKU: 7000145572
$29.60 / Kit
Add $199.00 worth of items to your cart to qualify for free shipping

Sold By: Kit
QTY:
SHIPPING DIMENSIONS Height: 5.00 Inches Width: 3.31 Inches Length: 13.50 Inches Weight: 1 Lb(s) 11 Oz

Product Benefits

  • Ready-to-install kit for complete cable or blank firestop installation
  • Tested up to 4 hours for fire-rated through penetration systems in accordance with ASTM E814 (UL 1479)
  • No gasket required to ease installation process
  • Rolled-out lip on sleeve allows for smooth cable entry
  • Brackets and sleeve work in tandem to help prevent slipping during installation
  • Allows for both new and retrofit data and telecom cable firestop installations

More Product Details

3M™ Fire Barrier Putty Sleeve Kits

Ready to Install and Prepared to Protect

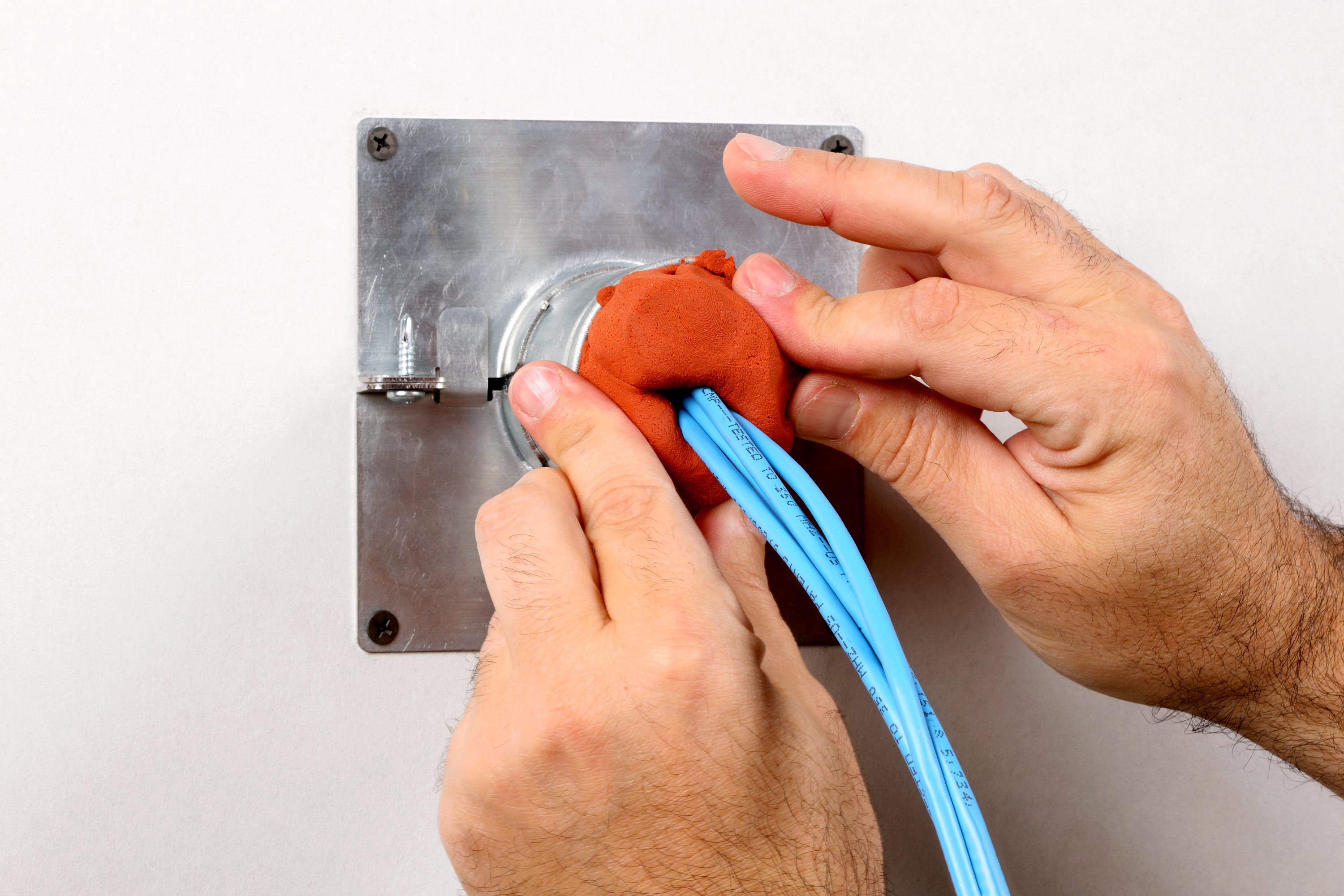

Prevent the passage of fire and smoke with 3M™ Fire Barrier Putty Sleeve Kits. These fire barrier sleeve kits can protect existing cable penetrations through walls or floors and be used as a one-piece sleeve or the sleeve may be split/hinged for existing cable installations. Tested up to 4 hours for fire-rated through penetration systems in accordance with ASTM E814 (UL 1479), these putty sleeve kits (PDF, 651.74 Kb) are a ready-to-install kit. This product does not require gaskets and its rolled-out lip on sleeve facilitates smooth cable entry. The sleeves can be easily installed in openings that are either tight to the sleeve or irregular and can accommodate oversized openings (up to a one-inch larger diameter than the 3M™ Fire Barrier Putty Sleeve diameter).

Recommended Applications

  • Existing through-penetration openings with cables
  • Future cable installations
  • New construction through-penetration openings for power and communication cables
  • Blank openings
  • Irregular openings
3M™ Fire Barrier Moldable Putty MP+

Versatile Kit for an All-in-One Solution

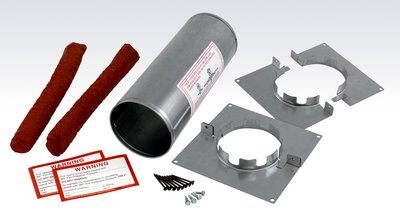

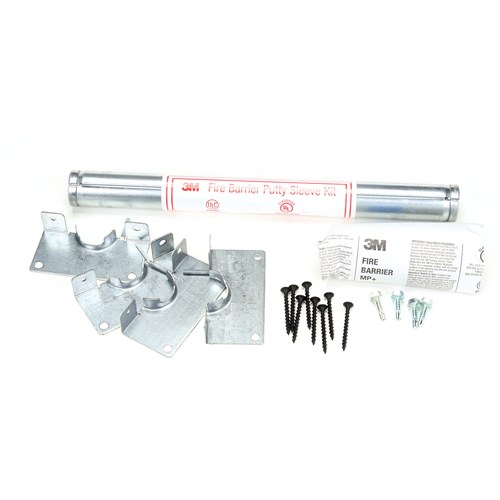

3M™ Fire Barrier Putty Sleeve Kits are ideal for high traffic cable penetrations and designed to be used for both new construction and retrofitting. Each kit contains a 3M™ Fire Barrier Putty Sleeve (two-part metallic sleeve with set of two-part metallic flanges), 3M™ Fire Barrier Moldable Putty MP+, sheet metal screws, drywall screws and two installation identification labels.

Reliable and Affordable Fire Protection
Effective and easy to install, 3M™ Fire Barrier Putty Sleeve Kits are part of a family of fire protection products that offer the broadest, long-lasting solutions for a variety of commercial, industrial and residential applications. As a trusted leader in the fire protection industry, 3M offers a comprehensive line of affordable products designed to meet the most demanding firestop requirements. Find the solution you need from the industry-preferred line of fire protection products.
